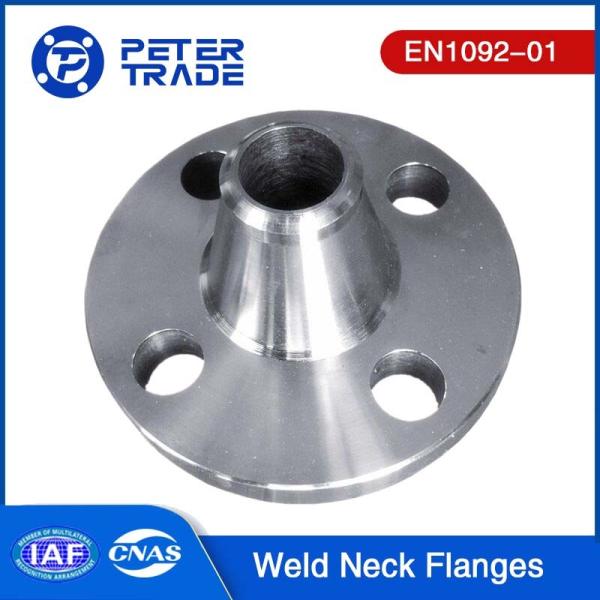

En1092-01 8 Inch Stainless Steel Weld Neck Flanges PN 16 Raised Face Weld Neck ASTM A182 F304/304H/316/316L Flange Welded to Pipe in Piping Systems Applications

Description of EN1092-01 Weld Neck Flanges:

Weld neck flanges are integral components in piping systems, featuring a tapered neck and a butt-weld end for seamless connection to pipes, forming a robust structural unit.

Their tapered design redistributes stress from the neck to the base, where it interfaces with the vessel or pipe, enhancing durability. However, manufacturing these flanges can be costly due to the extended neck requiring more material.

Weld neck flanges excel in high-stress environments, particularly in ASME Pressure Vessel applications. They match the internal diameter of the pipe, minimizing friction and flow obstruction.

Available in materials like copper, galvanized steel, stainless steel, cast iron, and aluminum, weld neck flanges offer versatility across industries. While they provide competitive advantages in assemblies, they also come with certain drawbacks.

EN1092-01 Weld Neck Flanges Specifications:

1.Dimensions are in millimeters(mm).

2.Dimensions can be specified by different purchasers.

Grades of Stainless Steel Slip On Flanges:

Stainless Steel Slip On Flanges specified by ASTM A182 are widely used in various industries. These flanges are designed to slip over the pipe and are welded both inside and outside to provide a secure and leak-proof connection. The material grades F304, F304L, F316, F316L, and F304H denote specific types of stainless steel, each with unique properties suited for different applications.

ASTM A182 F304:

Composition: Austenitic stainless steel with a nominal composition of 18% chromium and 8% nickel.

Properties: Good corrosion resistance, weldability, and formability. Suitable for general-purpose applications.

ASTM A182 F304L:

Composition: Similar to F304 but with a lower carbon content (max 0.03%).

Properties: Enhanced resistance to intergranular corrosion after welding. Ideal for applications requiring post-weld heat treatment.

ASTM A182 F316:

Composition: Contains 16% chromium, 10% nickel, and 2% molybdenum.

Properties: Superior corrosion resistance, especially against chlorides and other industrial solvents. Suitable for more aggressive environments.

ASTM A182 F316L:

Composition: Similar to F316 but with lower carbon content (max 0.03%).

Properties: Improved resistance to intergranular corrosion. Preferred for welding operations where post-weld annealing is not possible.

ASTM A182 F304H:

Composition: Similar to F304 but with a higher carbon content (0.04%-0.10%).

Properties: Improved high-temperature strength and creep resistance. Suitable for high-temperature applications.

How Can Weld Neck Flanges Be Used?

Weld neck flanges typically have a raised face (RF) or flat face configuration, depending on the sealing surface required for the specific application.

• Raised Face (RF) Weld Neck Flanges:

Sealing Surface: RF weld neck flanges have a raised portion around the bore hole that aligns with the gasket. This raised face ensures a tighter seal when compressed against a corresponding raised face on the mating flange.

Application: RF weld neck flanges are commonly used in applications where a secure, leak-proof seal is necessary under moderate pressure and temperature conditions. They are suitable for a wide range of industrial applications, including oil and gas, chemical processing, and general piping systems.

• Flat Face Weld Neck Flanges:

Sealing Surface: Flat face weld neck flanges have a flat surface around the bore hole that mates directly against a flat-faced flange or a gasket. The sealing is achieved by compressing the gasket between the two flat faces.

Application: Flat face weld neck flanges are used in applications where a flat surface seal is sufficient and where ease of alignment and assembly is important. They are commonly found in low-pressure and non-critical applications, such as water supply lines, HVAC systems, and some industrial processes.

In both cases, the choice between RF and flat face weld neck flanges depends on the specific requirements of the application, including pressure, temperature, fluid characteristics, and environmental conditions. Proper gasket selection and installation are crucial for ensuring a reliable seal in either configuration.

Can Weld Neck Flanges be Cost-effective?

Durability and Longevity: Weld neck flanges are known for their durability and long service life. When properly installed and maintained, they provide a reliable connection that can withstand high pressures, temperatures, and corrosive environments without frequent replacement.

Reduced Maintenance: Due to their sturdy construction and secure weld connection, weld neck flanges generally require less maintenance compared to other types of flanges. This can result in lower operational costs over time, as there are fewer incidents of leaks or failures that require repairs.

Improved Safety: The strong weld connection of weld neck flanges enhances operational safety by minimizing the risk of leaks or blowouts, especially in high-pressure or critical applications. This can lead to savings by preventing accidents, downtime, and associated costs.

Compatibility and Versatility: Weld neck flanges are compatible with a wide range of piping systems and materials, allowing for versatility in various industrial applications. They can accommodate different pipe schedules and are suitable for both high-pressure and high-temperature environments.

Cost of Installation: While the initial installation of weld neck flanges may require skilled labor and proper welding equipment, the investment in quality installation pays off in terms of long-term reliability and reduced maintenance costs.

Lifecycle Cost: When considering the total lifecycle cost, including initial purchase, installation, maintenance, and replacement cycles, weld neck flanges often prove to be cost-effective compared to flanges that may require more frequent maintenance or replacement.
